K2207
K2207

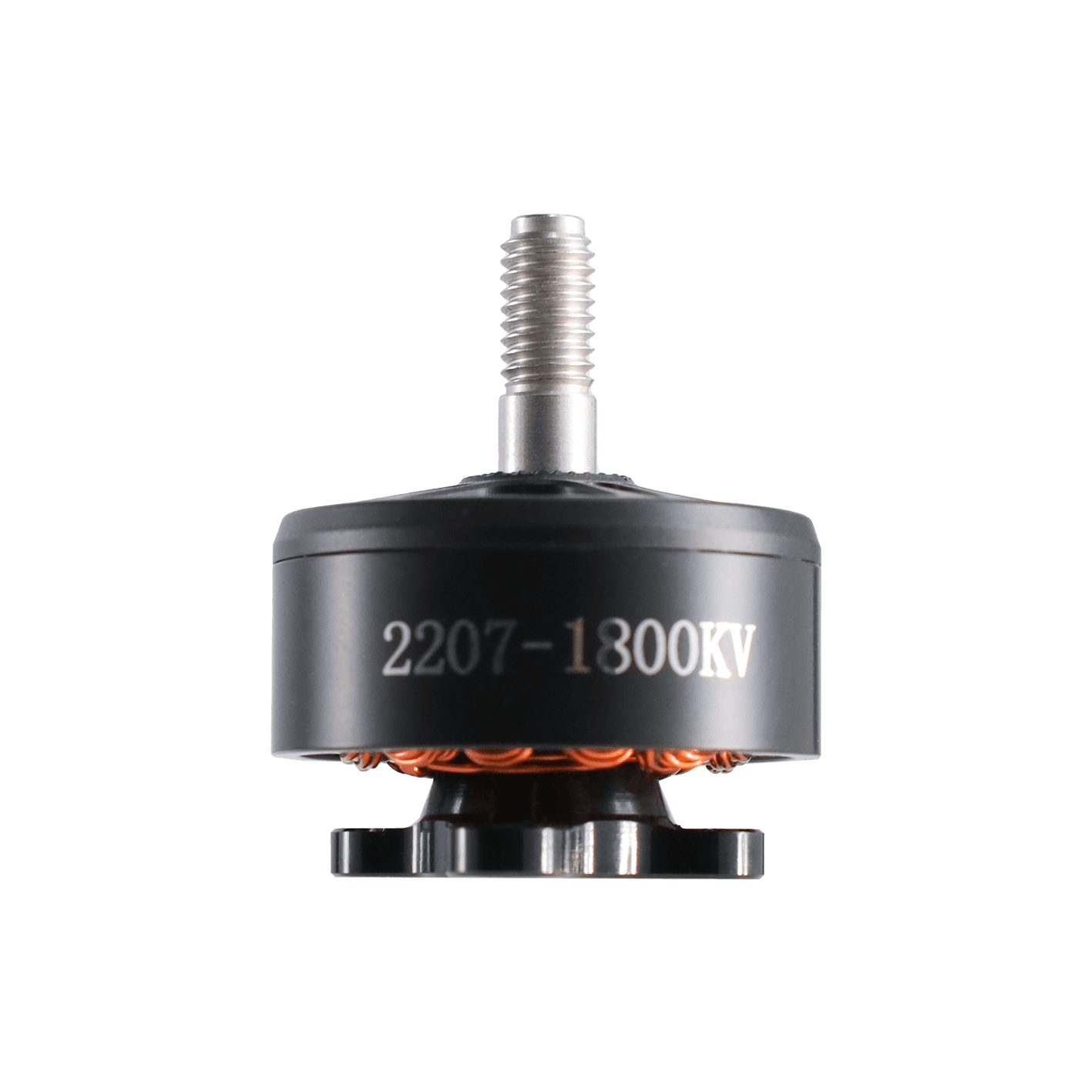

2207 brushless motor, KV 1800KV, for 5inch propellers, max thrust -, weight 36.3±1g（With wire）.
KV
1800KV KV
Weight
36.3±1g
Diameter
D27.3*19.6mm
Length
13.5±0.3mm
Features
Motor Model: 2207
Motor Size: D27.3*19.6mm
Shaft-D: Ф5 -0.01/-0.06mm
Shaft-L: 13.5±0.3mm
Wire Length: 160±5mm
Weight: 36.3±1g（With wire）
No Load Voltage: 10V
No load Current: 1.13±0.3A
No load Speed: 17014~18805RPM（1800KV）
Internal resistance: 78.52mΩ±5%
Working Voltage: 4-6S（3.7-4.2V/S）
KV Rating: 1800KV
Propeller: 5inch
Max Thrust: 1.3kg
Flight Weight: 1kg
Applications
FPV RacingFreestyleAerial Photography
